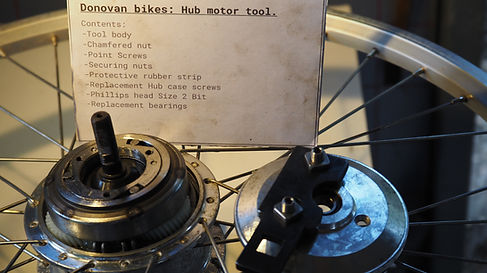

How to use: Donovan Hub Motor Tool

How to use the Hub motor tool to disassemble the AKM hub motor.

• Mount the motor wheel into a vice with the cable pointing down.

• Undo the three screws with a PH2 bit.

• Take the assembled tool and loosen srews.

• Loosen screws unti the body sits flat on the lip and the chanferd nut clears the lip.

• Tighten the locking nuts and place the protective rupper strip over the hub axle put the tool back into place.

• Use the original serrated nut to secure the tool onto the motor hub.

• With the tool in place, put the breaker bar into the square hole or place post over the tools step.  Secure this under your arm.

• Carefully turn the wheel clockwise to undo the hub.

• Once Motor case is loose, slacken serrated nut.

• Carefully undo the motor case, the surface may be sharp.

• Let the wheel and hub case drop, a slight push down will help.

• Remove roller clutch carefully, place into a storage container as roller pins may fall out.
